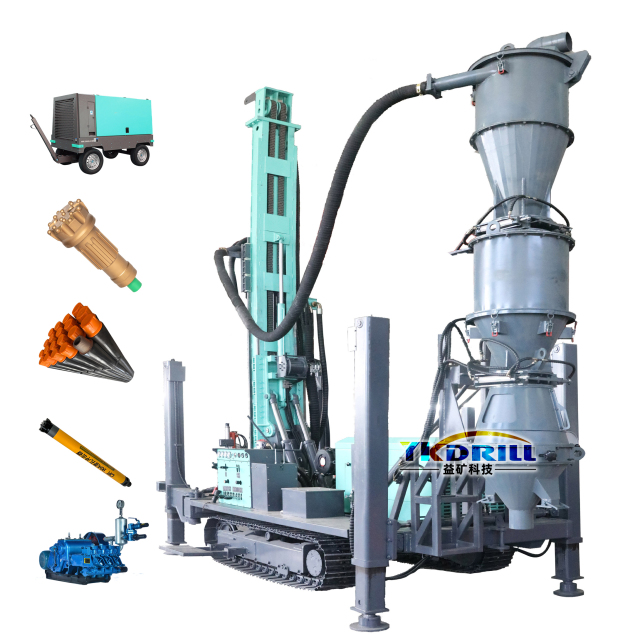

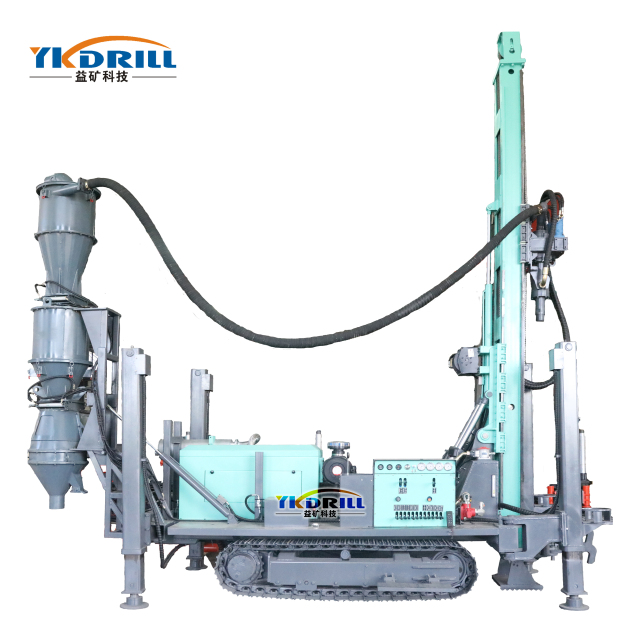

200m Reverse Circulation Drilling Equipment for Geotechnical Survey

Name: 200m Reverse Circulation Drilling Equipment for Geotechnical Survey
Brand: Shandong Yikuang Drilling Technology Co.,Ltd.
Availability: InStock
Rating: 5 (1 reviews)

Any drill rig can be customized！Quick quote, welcome to consult!

product specification:

RC-500

Drilling Depth:

Max.500m

Drill Pipe Diameter(mm):

100mm-400mm

Place of Origin:

Shandong CHINA

$35000.00

Contact WhatsApp

Add to Quote List View Quote List

Description

crawler mounted RC drilling equipment terrain adaptable RC drill rig RC500DTH and top drive rig borehole mineral exploration machine

Reverse circulation multifunctional drilling rig is a new efficient, environmentally friendly, and multifunctional tracked
drilling rig.lt adopts the latest RC drilling and mining technology from abroad, and drilling dust can be effectively collected

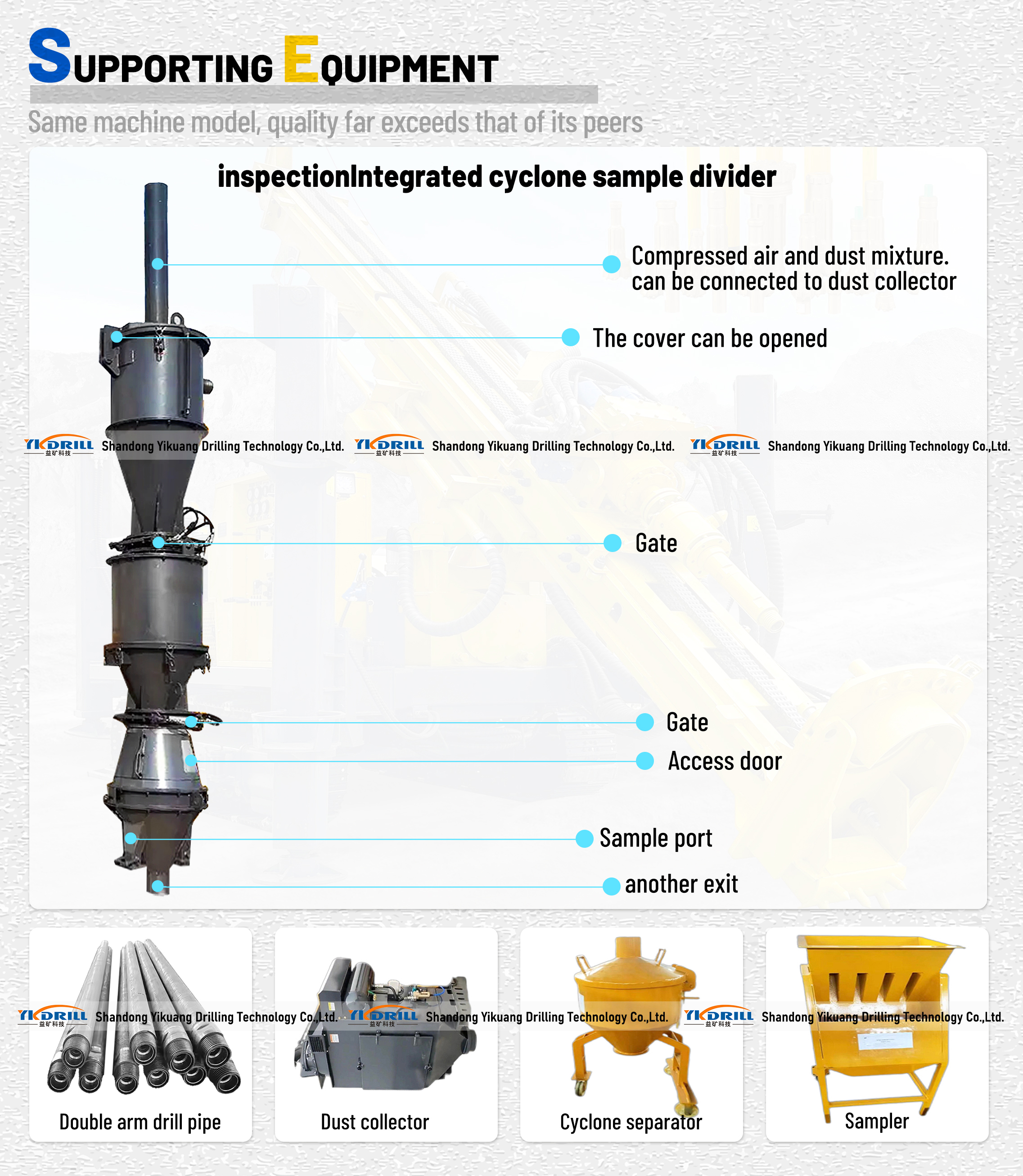

through dust collectors, avoiding environmental pollution. lt can also be collected and discharged through a cyclone separator,
which can be used for sampling and analysis work in geological exploration departments.lt is the preferred equipment for
geological exploration drilling and other deep holes.

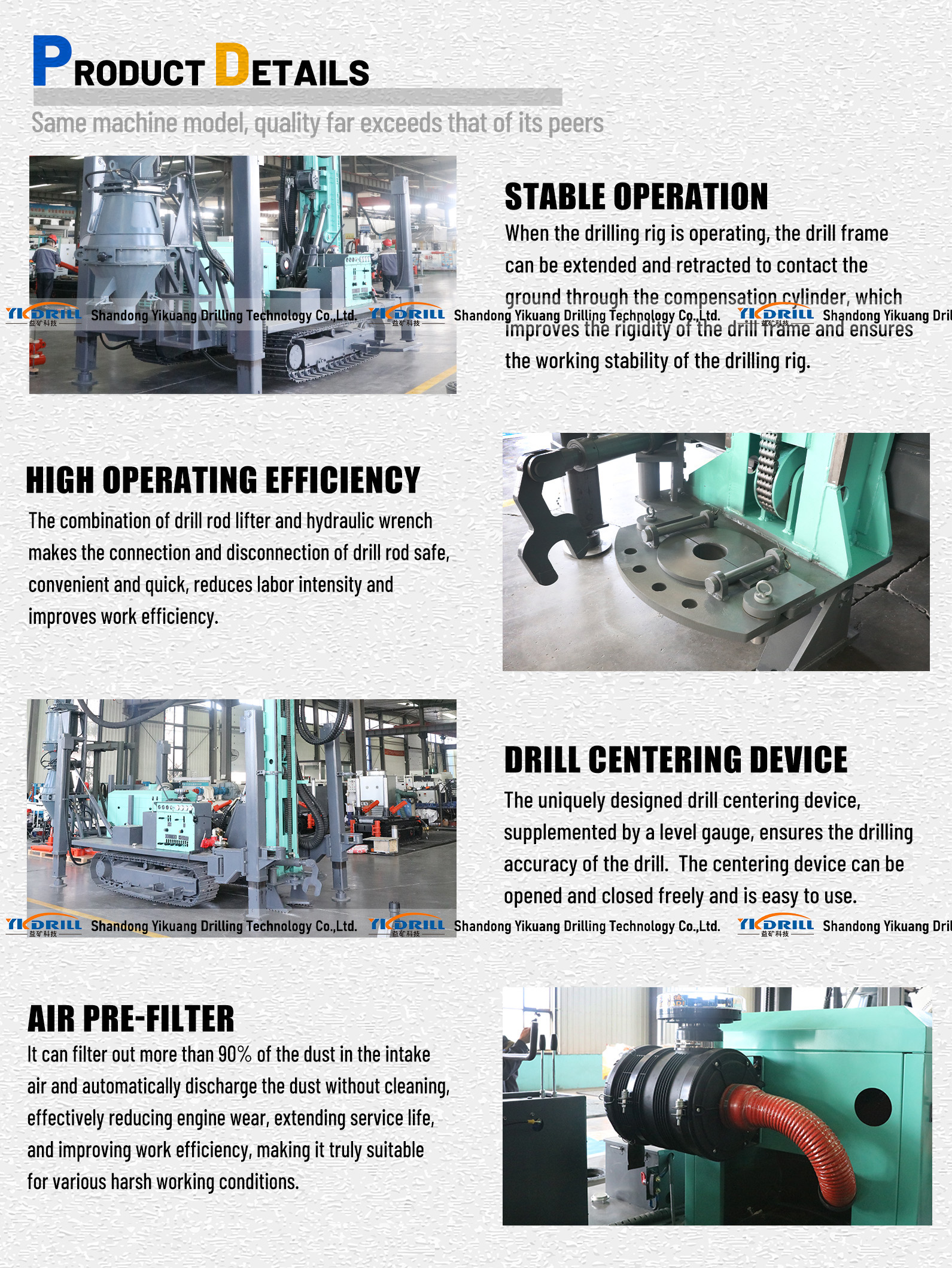

This drilling rig can use compressed air reverse circulation down-hole drilling on various formations. The lifting of the drilling rig frame, compensation of the drilling frame/multi angle drilling unloading of the drill pipe rotation and feeding,support legs
,hoisting,walking and other movements are all achieved by the hydraulic system, greatly reducing labor intensity, improving
construction efficiency and engineering quality. It is a geological exploration drilling, drilling wells, monitoring wells, ground
source heat pump air-conditioning and other deep hole of choice for equipment.

very cost-effective RC Drilling Machine!

Same machine model, quality far exceeds that of its peers！！

PRODUCT SPECIFICATIONS

Item	Specification
Drilling Depth	500m
Hole Diameter	105–400 mm
Drill Pipe Length	3m / 6m
Walking Speed	2.5km/h
Host Power	Cummins 132 KW
Penetration Efficiency	15–35 m/h
Working Air Pressure	1.6–8.0 MPa
Air Consumption	16–55m³/min
Lifting Force	30 Ton
Rotation Speed	40/75/160 rpm
Rotating Torque	8000–12000 N·m
Dimension	6300×2100×2500 mm
Weight	11–12 Ton
